物理特性/Physical Characteristics

尺寸 Dimensions:

77.5mm x 66mm x55mm

重量 Weight:

37g

電壓 Voltage:

3.3-5 VDC

電流 Current:

200mA

性能指標/Performance Characteristics

傳感器像素 Image (Pixels):

640 pixels (H)x 480 pixels (V)

光源 Light Source:

Illumination:6500K LED

視場角 Field of View:

72° (H) x 64° (V)

旋轉傾斜偏轉 Roll / Pitch / Yaw:

360°, ±65° , ±60°

打印對比度Print Contrast:

20% minimum reflective difference

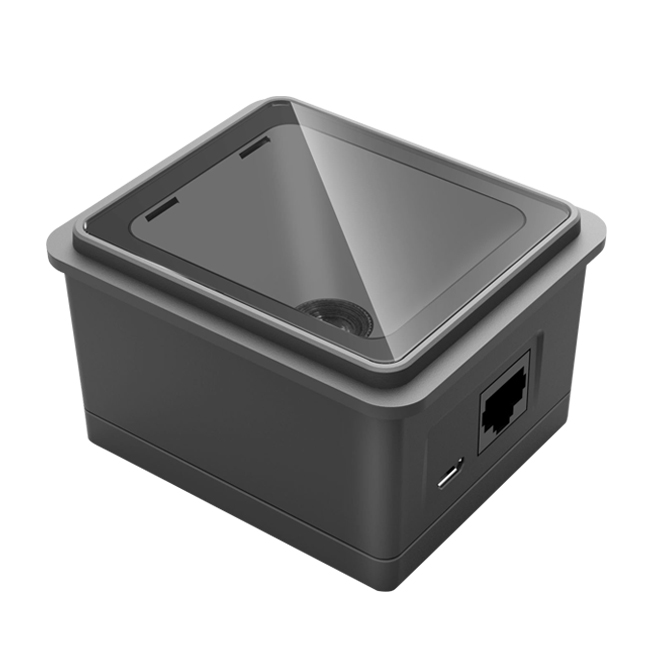

接口支持 Interfaces Supported:

USB,RS232

運動容差Motion Tolerances:

>2m/s

解碼能力/Symbology Decode Capability

一維條碼/1-D:

UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal , etc

二維條碼/2-D:

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc.

條碼精度Minimum Resolution:

≥3.9 mil

用戶環境參數/User Environment

工作溫度 Operating Temperature:

-40°C to 70°C

存儲溫度 Storage Temperature:

-50°C to 85°C

濕度 Humidity:

0% to 95% relative humidity,non-condensing

抗震性 Shock Specifications:

Designed to withstand 1.5m(5’) drops

環境光免疫 Ambient Light Immunity:

0-100,000 Lux.

解碼范圍/Decode Ranges

6.88 mil (PDF417)

0mm-50mm

10 mil (Data Matrix)

0mm-50mm

13 mil (UPCA)

5mm-110mm

20 mil (QR)

0mm-100mm

性能可能會受到條形碼質量和環境條件的影響 Performance may be impacted by bar code quality and environmental conditions
