1、卓越的一維/二維條碼識讀性能 ,4M/S超高速運動容差 2、IP52 防塵等級;1.2米抗跌落 3、支持USB和RS232接口 4、支持紙質,薄膜類,商品碼,付款碼讀取 5、支付寶開票碼、國稅開票碼、航天信息、百旺金賦開票, 微信開票助手,閃電開票

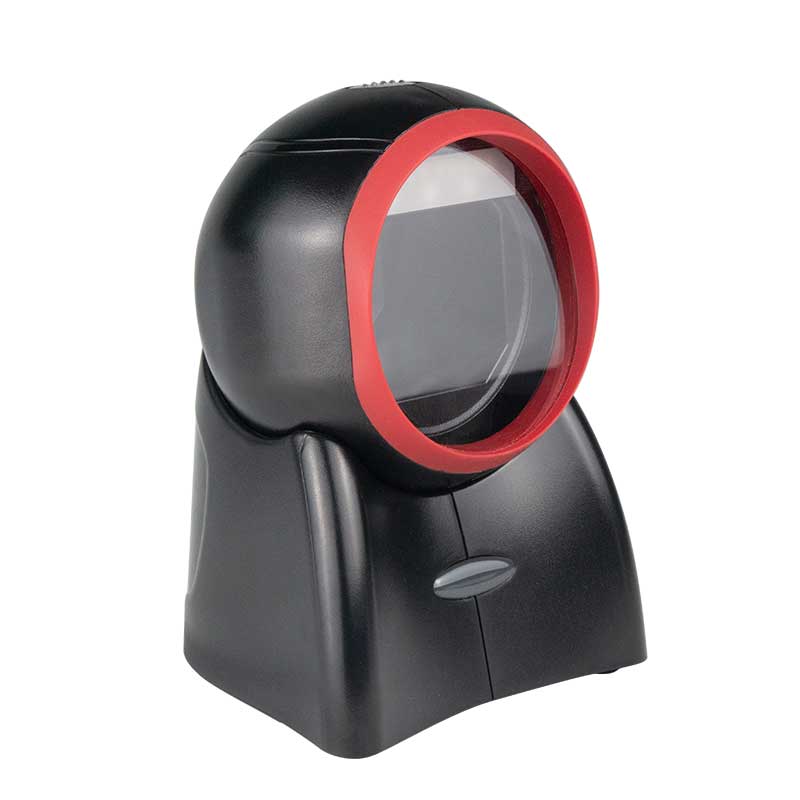

美松二維碼掃描平臺掃描:支持一維/二維條碼識讀性能 ,3M/S超高速運動容差;IP52 防塵等級;1.2米抗跌落,支持USB和RS232接口;支持紙質,薄膜類,商品碼和付款碼快速讀??;尤其對殘缺碼,污損碼和變形碼有非常強的糾錯能力;紙質條碼與電子屏條碼間流暢切換,二維碼掃描,平臺掃碼器,超市收銀掃描搶,手機微信收款碼支付盒掃條碼槍,農資藥店掃碼平臺.支持USB和RS232接口,支持紙質,薄膜類,商品碼,付款碼讀取,支付寶開票碼,國稅開票碼,航天信息,百旺金賦開票微信開票助手,閃電開票.
關聯產品 :MS-7710 MS-20E MS-20 MS-28 MS-2102 MS-2104 MS-6100 MS-6400 MS-4200N MS-3200V
MS-7160N MS-7120N MS-6601 MS-7180
相關推薦 :微型打印機 針式打印機 熱轉印打印機 智能一體機 票據打印機 嵌入式熱敏打印模塊 無版燙金機 微型打印機 關于美松

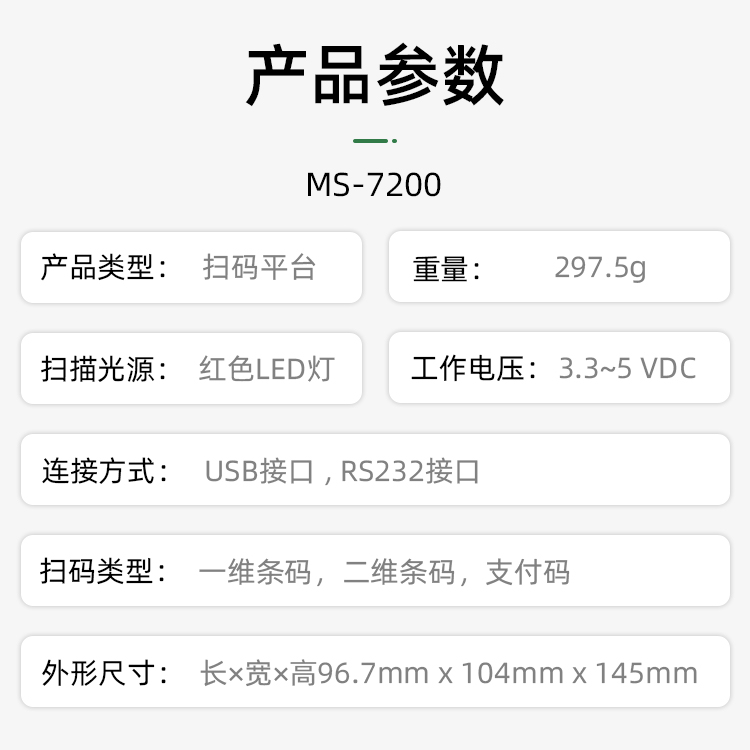

物理特性/Physical Characteristics |
||
尺寸 Dimensions: |
96.7mm x 104mm x 145mm |
|
重量 Weight: |
297.5g |
|
電壓 Voltage: |
3.3~5VDC |
|
電流Current: |
450mA (Operating) |
|
性能指標/Performance Characteristics |
||
傳感器像素 Image (Pixels): |
1280 pixels (H)x 800 pixels (V) |
|

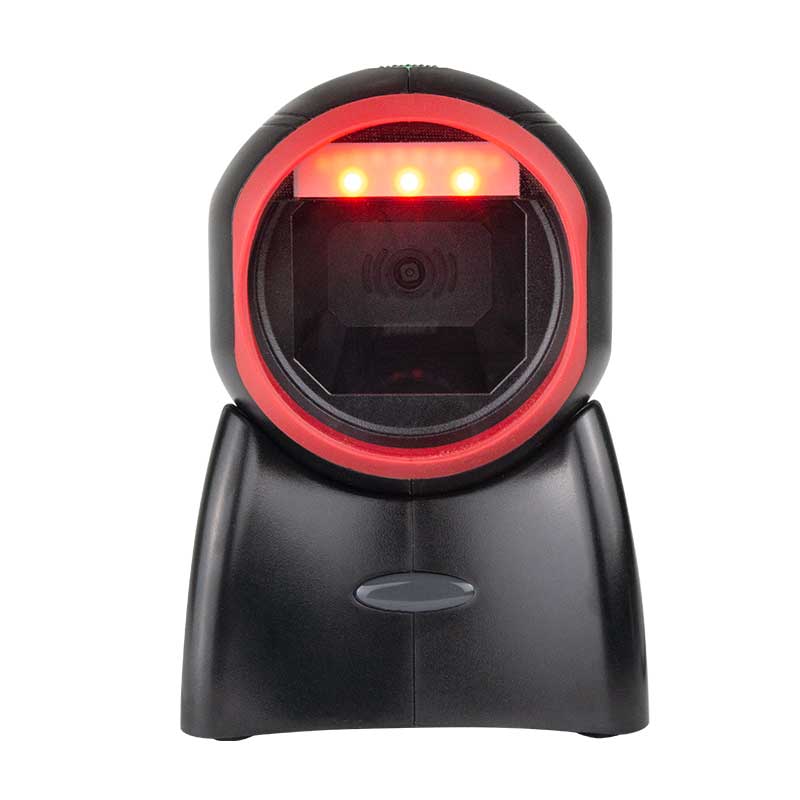

光源 Light Source: |
紅光LED |
|
視場角 Field of View: |
50° |
|
旋轉/傾斜/偏轉 Roll / Pitch / Yaw: |
58°(水平) , 45°(垂直) |
|
打印對比度Print Contrast: |
20% minimum reflective difference |
|
接口支持 Interfaces Supported: |
USB,RS232 |
|
運動容差Motion Tolerances: |
>2m/s 解碼能力 |
|
解碼能力/Symbology Decode Capability |
||
一維條碼/1-D: |
Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc |
|
二維條碼/2-D: |
PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC 39,DataMatrix, etc. |
|
條碼精度Minimum Resolution |
≥3.9 mil |
|
用戶環境參數/User Environment |
||
工作溫度 Operating Temperature: |
-20°C to 60°C |
|
存儲溫度 Storage Temperature: |
-30°C to 70°C |
|
濕度 Humidity: |
5% to 95% relative hum idity,non-condensing |
|
抗震性 Shock Specifications: |
8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes |
|
環境光免疫 Ambient Light Immunity: |
0-100,000 Lux. |
|
解碼范圍/Decode Ranges |
||
5 mil (Code 39) |
0mm-60mm |
|
13 mil (code39) |
0mm-170mm |
|
15 mil (PDF417) |
0mm-60mm |
|
13 mil (UPC-A) |
0mm-150mm |
|
30 mil (QR Code) |
0mm-130mm |
|
Performance may be impacted by bar code quality and environmental conditions |
||
